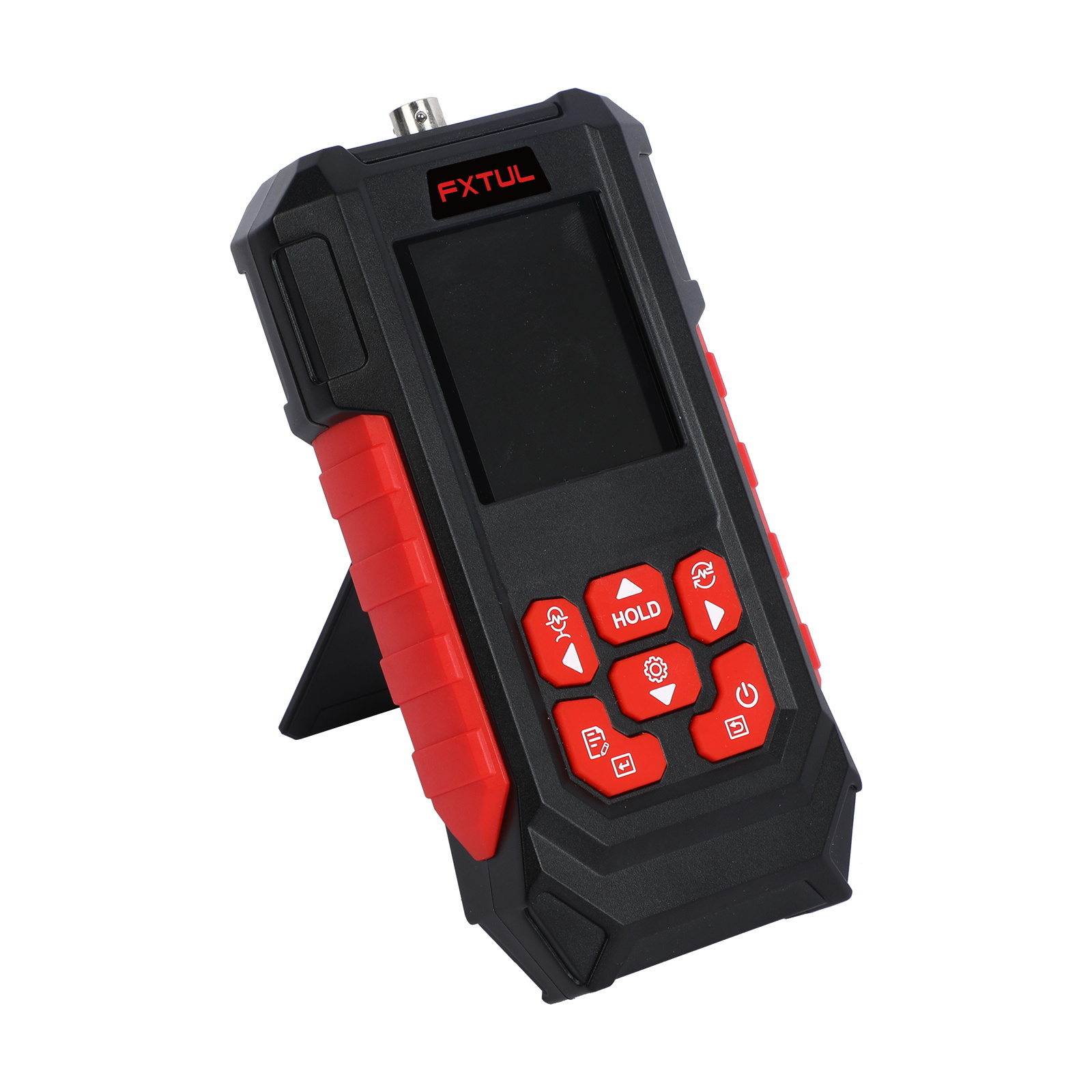

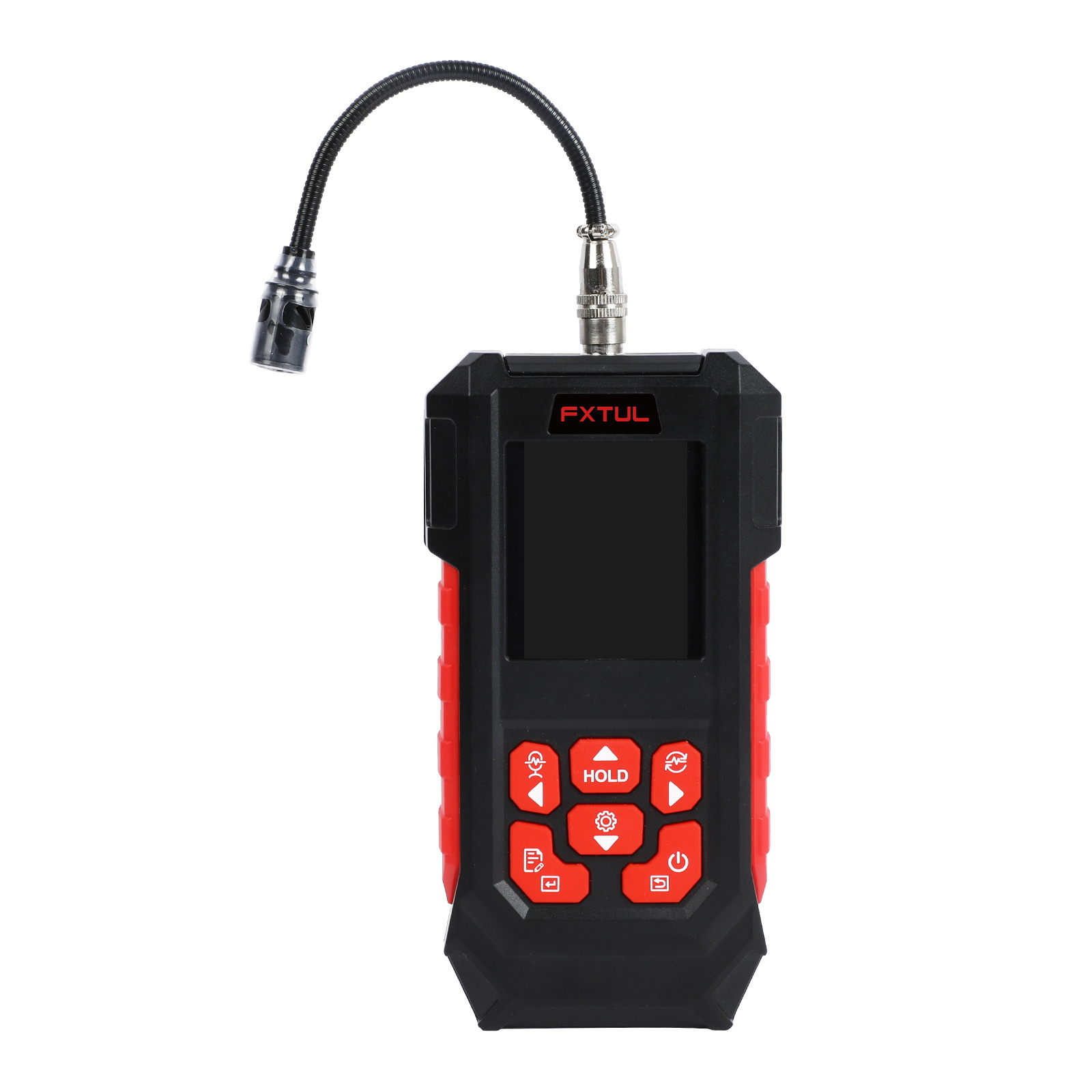

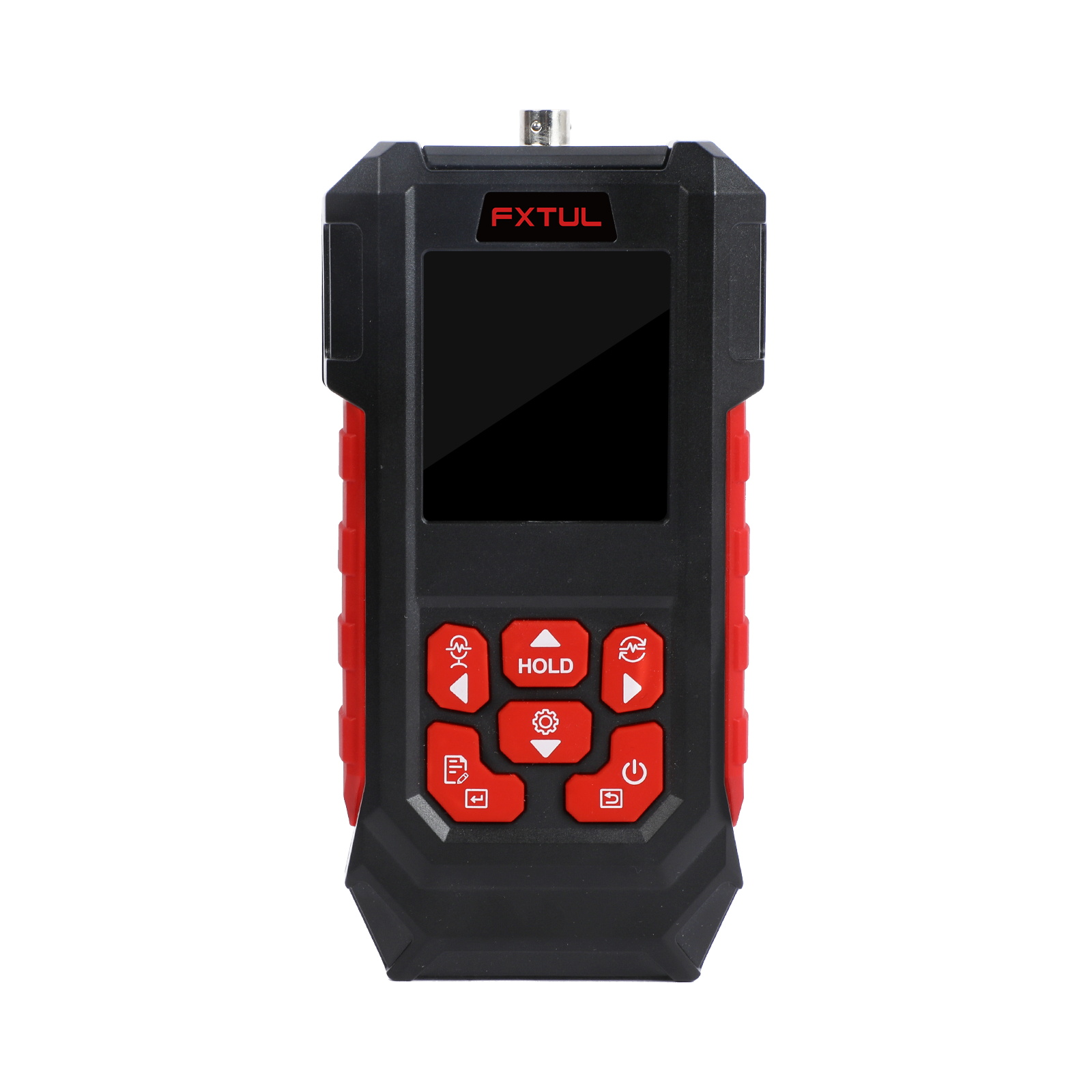

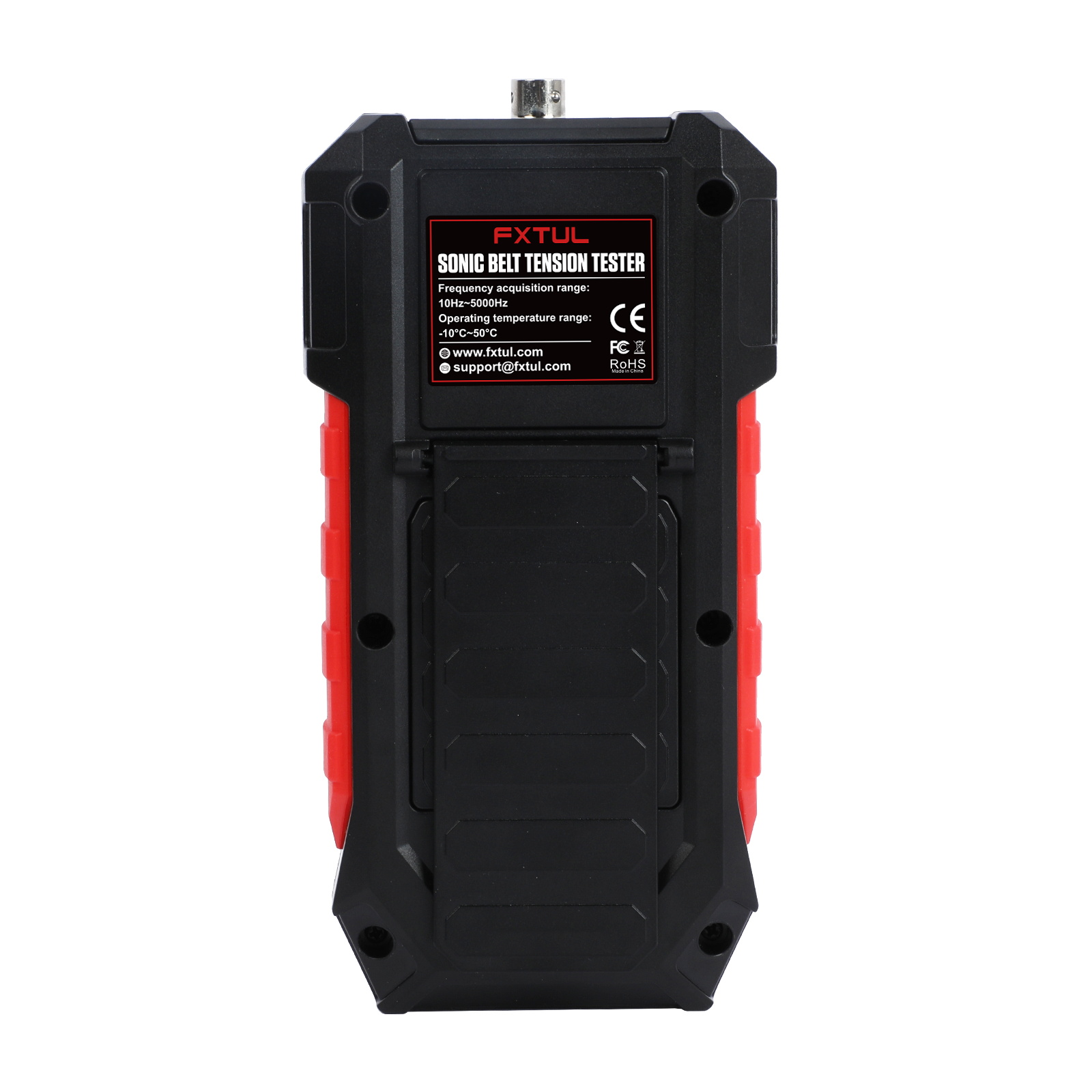

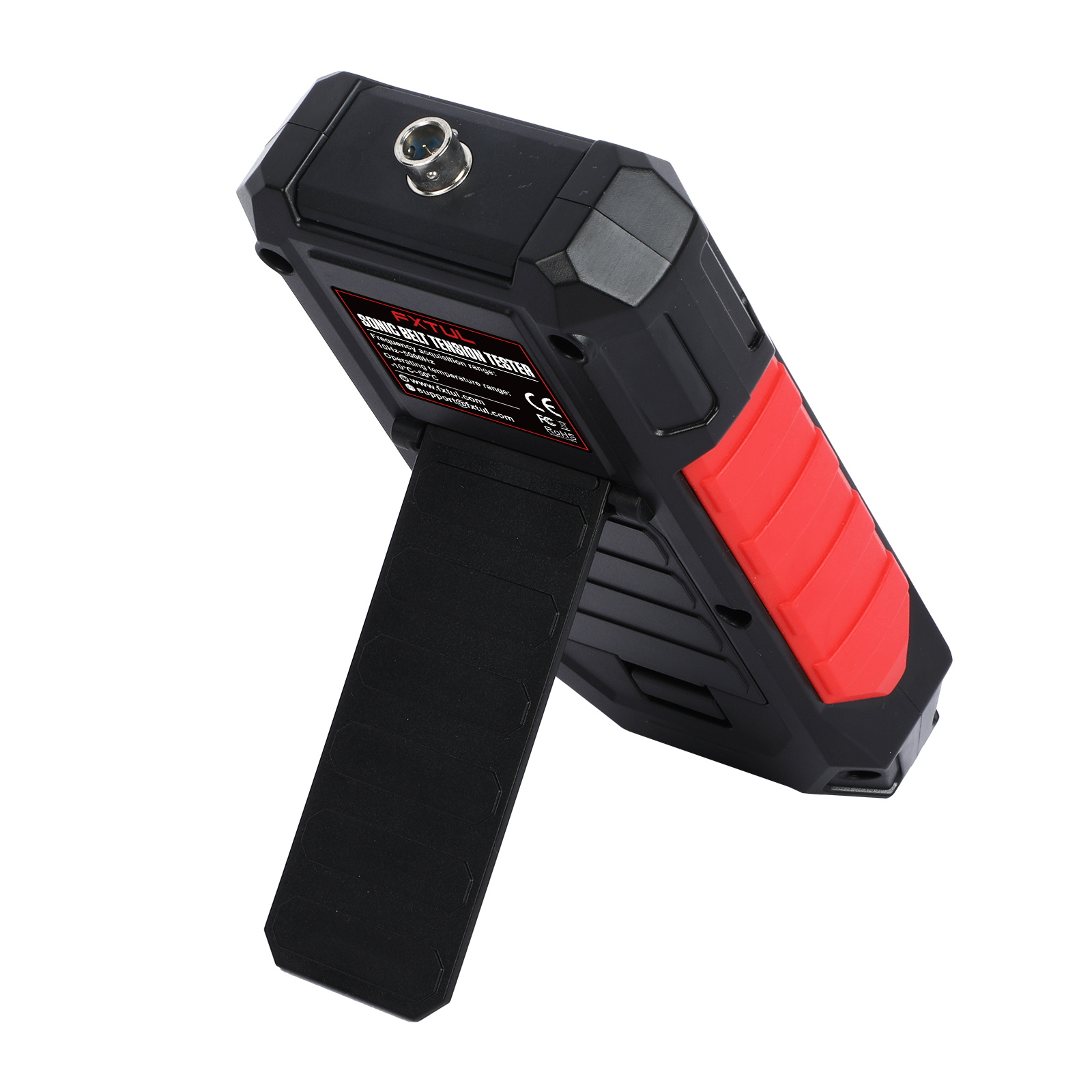

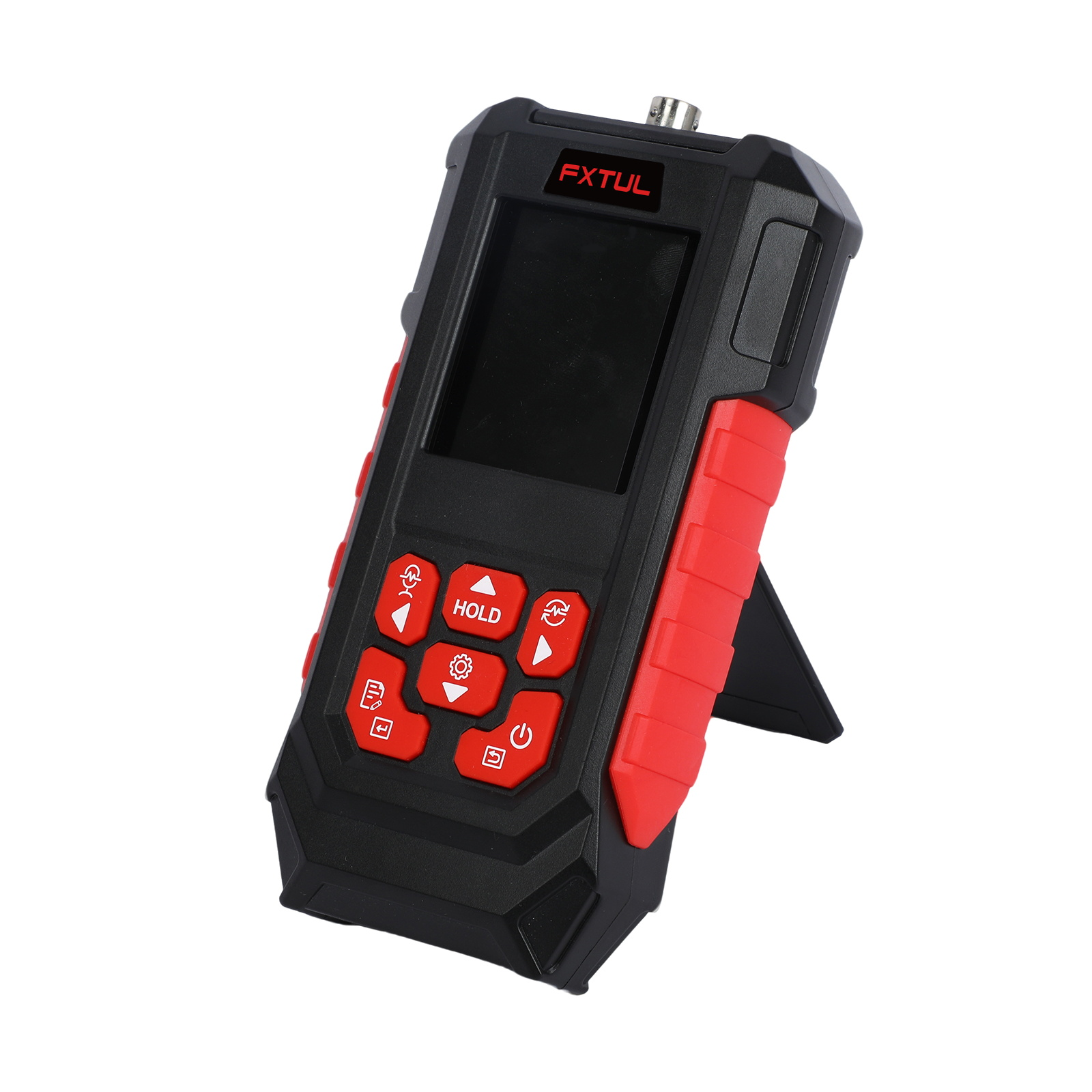

FXTUL Sonic Belt Tension Tester V Belt Tension Gauge
FXTUL Sonic Belt Tension Tester V Belt Tension Gauge
Không thể tải khả năng nhận hàng tại cửa hàng
Compatible with Multiple Belts: Tests toothed & flat timing belts, V-belts, V-ribbed belts, and guide wires
Quick Selection: Built-in data quick-select function for effortless belt data matching
Custom Data: Input up to 999 sets of custom data to tailor your tester!
Energy-Saving & Eco-Friendly: Features remaining power display, dims after 1 minute of inactivity, and auto-shuts down after 5 minutes!
Contact Us For Discounts：
FXTUL Email: shop@fxtul.com
FXTUL Whatsapp: +86 180 1878 8360
What is a Sonic Belt Tension Tester?
When a belt experiences longitudinal impact between pulleys, its inherent elasticity generates vibrations at specific frequencies. These frequencies vary depending on the belt type, density, width, and span. Given the belt type, density, width, and span, the belt tension analyzer non-invasively and accurately measures installation tension related to belt performance by analyzing the belt's vibrational sound waves. When the belt is stationary, the sensor compensates for sound waves generated by span deflection and displays the tension value through digital calculation and processing.
Product Features:
TFT Color Screen Display: Offers clearer and more distinct readings than traditional belt tension meters.
10-Level Backlight Brightness Adjustment: Adjusts brightness according to ambient lighting conditions for clear visibility even in low-light environments.
Battery Level Indicator: Prompts users to recharge promptly, preventing data loss due to depleted power.
Single/Continuous Measurement Mode
Supports trigger intensity settings
Multiple theme styles available
Spectrum graph display supported
Built-in quick data selection function
Supports user-defined data storage (up to 999 sets)
Auto-dims after 1 minute of inactivity; auto-shuts down after 5 minutes
Warm tips:
• Overwriting the data table will replace the modified table permanently. This operation cannot be undone.
• If the data format is incorrect and the device cannot recognize it after restarting, the device will automatically use a blank file and send it back.
• It is recommended to copy the DATA.CSV file to your computer before editing. After editing is complete,
• Data entry must use an English input method;
• Input data must strictly follow the template format requirements;
• Do not store other files in this storage space;
• Never disconnect the USB connection while saving files to prevent data loss;
• The database supports a maximum of 999 data sets.
Related Parameters:
• Display Mode: TFT LCD Screen
• Battery Type: Four AAA Batteries
• Frequency Acquisition Range: 10Hz to 5000Hz
• Operating Temperature Range: -10°C to 50°C
• Operating Humidity Range: 15% to 80% RH (non-condensing)
• Detection Technology: Acoustic Analysis
